COMPASS V340 Handheld
OGI Camera for Gas Leak Detection
KEY FEATURES

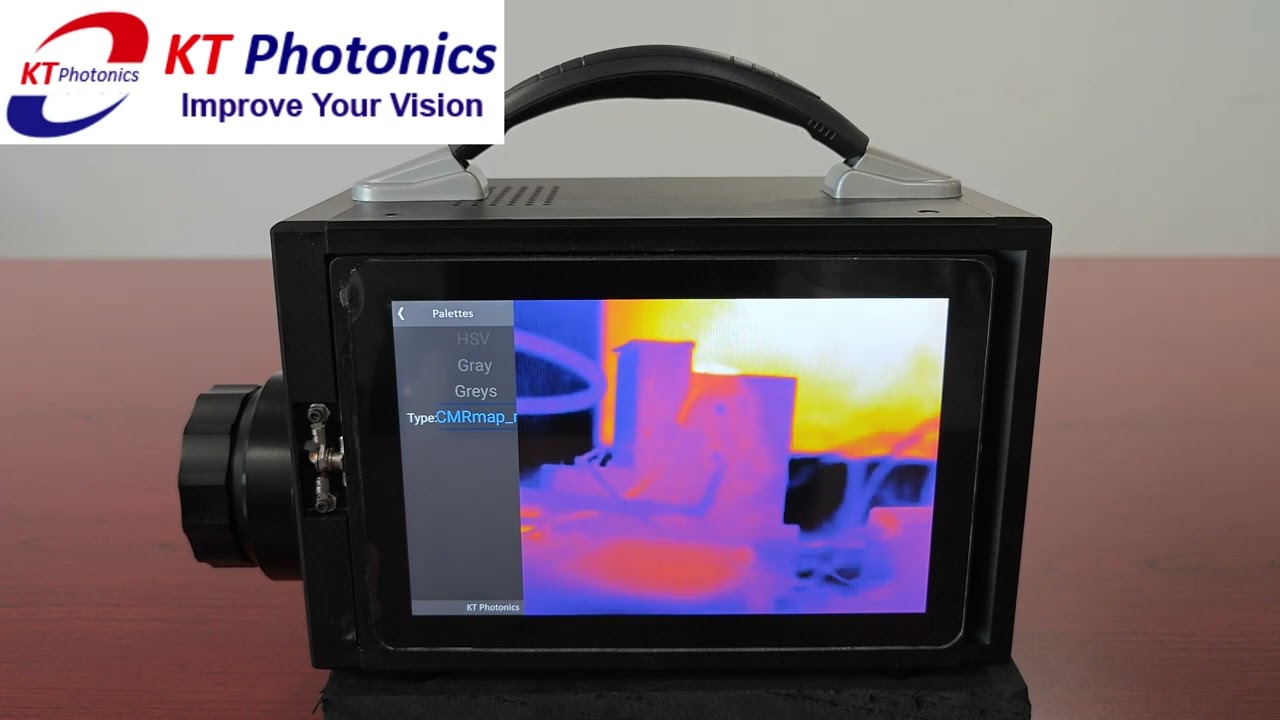

The COMPASS V340 Optical Gas Imaging (OGI) handheldcamera offers unmatched gas leak detection capabilities. This OGI camera can detect the smallest leaks of more than 400 different VOC gases (including methane) and has a spectral response from 3.2μm to 3.5μm wavelength.
The COMPASS integrates KT Photonics’ most advanced High Operating Temperature (HOT) mid-wave-IR OGI (MWIR) detector, giving the ability to quickly visualize gas leaks and to accurately pinpoint the source. With real-time crystal-clear images, users can scan large industrial areas rapidly, improving the efficiency of leak detection and remedy operations.
The KT V340 OGI Camera Key Features ： 1.) Exceptional Image Quality to accurately & quickly identify leak locations. 2.) Advanced HOT MWIR Infrared detector. High Sensitivity, Low power, Whisper Quiet Cooler with extended operating life. 3.) Live scenes display with gas leak plume overlay. On-board video & voice recording, snapshot function.

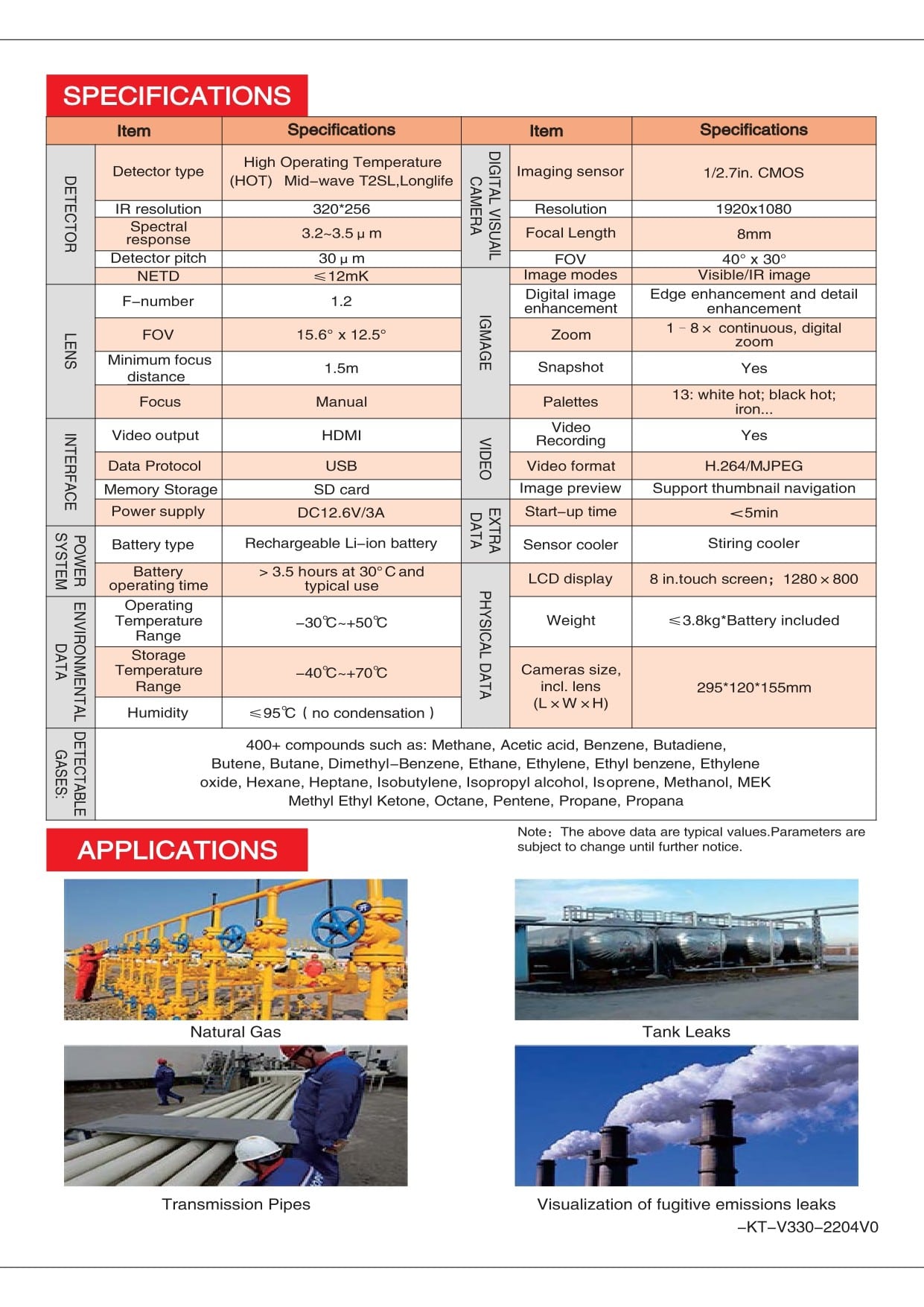

Detectable Gases
400+ compounds such as: Methane, Acetic acid, Benzene, Butadiene,Butene, Butane, Dimethyl-Benzene, Ethane, Ethylene, Ethyl benzene, Ethylene,oxide, Hexane, Heptane, Isobutylene, Isopropyl alcohol, Isoprene, Methanol,MEK Methyl Ethyl Ketone, Octane, Pentene, Propane, Propana
